OUR PROJECTS
Welcome to my portfolio. Here you’ll find a selection of my work. Explore my projects to learn more about what I do.
Flow Observation Project for a Water Utilities Company
AB Surveying and Development also offers Flow Observation to its clients by using Mainstream AV Flowmeter. The instrument is capable of data gathering at either open (ex. culverts, creeks) or closed (ex. box or round pipes) channels. The instrument is also capable of observing the flow in the channels even if the flow is only partial.
This instrument is capable of measuring the flow velocity, which is the speed of the flow, by immersing the flowmeter in the liquid. The instrument has a probe that emits ultrasound into the liquid. Bubbles and solid particles then reflects back the ultrasound to the probe which is being used by the instrument to measure the speed of the flow. It is also capable of measuring the cross-sectional area of the flow at different times by installing the description of the channel and checking the level, or height, of the flow using a pressure transmitter or ultrasonic sensor. Lastly, it collects the flow rate, which is the volume of flow in the channel at a certain time, by multiplying the flow velocity to the cross-sectional area of the flow.
This instrument is capable of measuring the flow velocity, which is the speed of the flow, by immersing the flowmeter in the liquid. The instrument has a probe that emits ultrasound into the liquid. Bubbles and solid particles then reflects back the ultrasound to the probe which is being used by the instrument to measure the speed of the flow. It is also capable of measuring the cross-sectional area of the flow at different times by installing the description of the channel and checking the level, or height, of the flow using a pressure transmitter or ultrasonic sensor. Lastly, it collects the flow rate, which is the volume of flow in the channel at a certain time, by multiplying the flow velocity to the cross-sectional area of the flow.
Aerial LiDAR Mapping of a Mining Site in Isabela
An exploration area located at Dinapigue, Isabela with an area of 2,570 hectares was surveyed via Aerial LiDAR Scanning, using the RIEGL VUX 1-LR Laser Scanner mounted on a helicopter. It took only six (6) hours to scan the area and acquire millions of points and thousands of photographs, in order to obtain a detailed point cloud and orthophoto. These data were then post-processed to achieve an accurate and reliable terrain maps, tied to established ground control points that are in network with nearby NAMRIA benchmarks and control points.
From the three-dimensional point cloud data, several maps were derived such as the digital terrain model (DTM), digital surface model (DSM), contour, and waterways. The footprint of roads, pathways and structures were also traced from the point cloud to digitize an as-built map. The as-built map was then incorporated with the contours and waterways to come up with a topographic map. These maps shall serve as the basemaps for the project area.
Aerial LiDAR Mapping and Hydrographic Survey in Zambales
Project Brief
The developing municipality of Sta Cruz, Zambales, under constant pressure of a growing population, urbanization and industrialization, addressed the emergent need for proper town planning. Using the combination of LiDAR mapping, the most advanced technique in surveying, and hydrographic surveying, a reliable information system, both on the land and waters of Poblacion South and Poblacion North, Sta. Cruz, was obtained.
Using the LiDAR and hydrographic data, various maps such as contour map, digital surface and terrain models, as-built map, orthophoto map, and digital 3D model are created. These maps can essentially be used for many applications, such as military operations, disaster management, mapping of man-made structures and natural resources, 3D city modelling, tax mapping, simulation of new buildings, updating and keeping cadastral data, change detection and virtual reality. This project enabled the municipality of Sta. Cruz to plan and manage the development of the locality for the benefit of its constituents, while safeguarding and enhancing the quality of its natural environment.
Aerial LiDAR Mapping in El Nido, Palawan
Nacpan Beach, covering a total area of 1.5 hectares, and Lalutaya Island, 33.5 hectares, were mapped using aerial LiDAR scanning. The aerial survey was conducted to acquire the characteristic and features of the area for planning and development purposes. With the LiDAR capability to penetrate vegetation and generate ground measurements, highly detailed digital terrain models (DTM) of the properties were obtained using the point cloud data gathered by the scanner.
The outputs from the data acquisition includes aerial photos which were geometrically corrected and georeferenced to obtain the orthophotos of the islands. The pixel colors from these orthophotos were then merged with the LiDAR point cloud, attributing each color to its respective co-coordinate point, to assemble a colorized 3D representation of the properties. Other outputs generated were the digital surface models (DSM) and topographic maps.
3D As-Built Scanning of the Monument of Outstanding Recollects
In 1994, the Order of Augustinian Recollects (OAR) founded the Bulwagang Recoletos or Hall of the Recollects, in the Recoletos Formation Center compound in the Mira Nila Homes at Tandang Sora, Quezon City. Just outside the Bulwagang Recoletos, this “Monument of Outstanding Recollects” can be viewed. It was sculpted by Florante Caedo in 1993. The monument features six heroes of the Augustinian Recollects, who have devoted great effort to evangelize and build Christian communities in the Philippines. Also, housed in this compound are the repository of all the manuscripts and artifacts that the OAR has accumulated throughout the centuries.
To showcase the capability of the as-built laser scanner, particularly the FARO Focus3D X330, this monument was scanned, given the permission from the administrators of the Hall of the Recollects. In-detail scan of the monument was achieved, as seen from the images above. These images are screen grabbed from the GIS software displaying the “point cloud” data collected via scanning. This level of accuracy obtained by the FARO laser scanner has also manifested with other structural survey projects conducted by the AB Surveying and Development.
To showcase the capability of the as-built laser scanner, particularly the FARO Focus3D X330, this monument was scanned, given the permission from the administrators of the Hall of the Recollects. In-detail scan of the monument was achieved, as seen from the images above. These images are screen grabbed from the GIS software displaying the “point cloud” data collected via scanning. This level of accuracy obtained by the FARO laser scanner has also manifested with other structural survey projects conducted by the AB Surveying and Development.
3D As-Built Scanning of a Fluid Collection and Recycling System Facility
The requirement of this project is to achieve a 3D as-built map of the FCRS facility of the power plant, covering an area of 76.80 hectares. With the modernization efforts of the client, they are in need of reference maps to create a retrofit design and monitor the pipe systems. In line with their goal to acquire relevant and accurate representation of their most vital assets, it is necessary to produce engineering grade, millimeter-level 3D structural maps.
It is then deemed appropriate to use the FARO Focus 3D X 330, a high definition laser scanner used for structural and industrial as-built surveys. Existing pipelines, pipe supports, vessels, and other facilities such as valves, separators, silencer, thermal ponds, sumps, etc. were precisely measured including their vertical and horizontal coordinates. The LiDAR point cloud composing billions of points representing the features portrays a realistic three dimensional terrain model of the facility. This model is later enhanced to create a 3D structural model by tracing the surfaces and features from the point cloud.
It is then deemed appropriate to use the FARO Focus 3D X 330, a high definition laser scanner used for structural and industrial as-built surveys. Existing pipelines, pipe supports, vessels, and other facilities such as valves, separators, silencer, thermal ponds, sumps, etc. were precisely measured including their vertical and horizontal coordinates. The LiDAR point cloud composing billions of points representing the features portrays a realistic three dimensional terrain model of the facility. This model is later enhanced to create a 3D structural model by tracing the surfaces and features from the point cloud.
Route Survey of Connection Facilities of a Proposed Power Plant in Bataan
This route survey was conducted to acquire the physical ground characteristic of the proposed alignment of the plant connection facilities from Mariveles Power Plant to the NGCP Mariveles substation. To assess the potential impact of the plant interconnection to the Luzon Grid, it is essential to conduct detailed engineering surveys, tower spotting and geological investigation.
For only a few hours, through aerial LiDAR surveying, a complete and accurate survey data of the 11KM route was gathered, acquiring a visually realistic digital representation of the terrain, called the colorized point cloud data. Several post-processing and office works were conducted to meet the requirements of the project. It includes the validation of centerline and right-of-way corridor limit, plan and profile mapping, design optimization of transmission line, tower spotting of 44 towers, diagonal sectioning at each tower site, digital terrain modelling, detailed topographic mapping, orthophoto processing, and parcellary survey.
For only a few hours, through aerial LiDAR surveying, a complete and accurate survey data of the 11KM route was gathered, acquiring a visually realistic digital representation of the terrain, called the colorized point cloud data. Several post-processing and office works were conducted to meet the requirements of the project. It includes the validation of centerline and right-of-way corridor limit, plan and profile mapping, design optimization of transmission line, tower spotting of 44 towers, diagonal sectioning at each tower site, digital terrain modelling, detailed topographic mapping, orthophoto processing, and parcellary survey.
Route Survey of 24-kilometer Transmission Line in Quezon Province
With the rising demand for power and transmission issues in the province of Quezon, Meralco Powergen is in force on building large capacity power generation units and accommodating the entry of these units to the grid. Among their projects is the 24 kilometer transmission line from Atimonan to Pagbilao. In partnership with NGCP, AB Surveying and Development completed the survey works of this projects last 2017.
This route survey project is aimed to determine the optimized design of the Atimonan to Pagbilao transmission line and establish strategic locations of tower sites along the proposed route. Aerial LiDAR survey is the technique conducted to gather a 3D point cloud and capture aerial photos of the project area. Validation of ground control points was conducted to check for accuracy. Plan and profile survey was engaged upon validation of the centerline and the right-of-way corridor limit. Post-processed data includes the following: georeferenced corridor-wide orthophoto, digital terrain model (DTM), topographic map, plan and profile maps, and diagonal section maps of the sixty (60) identified tower sites.
This route survey project is aimed to determine the optimized design of the Atimonan to Pagbilao transmission line and establish strategic locations of tower sites along the proposed route. Aerial LiDAR survey is the technique conducted to gather a 3D point cloud and capture aerial photos of the project area. Validation of ground control points was conducted to check for accuracy. Plan and profile survey was engaged upon validation of the centerline and the right-of-way corridor limit. Post-processed data includes the following: georeferenced corridor-wide orthophoto, digital terrain model (DTM), topographic map, plan and profile maps, and diagonal section maps of the sixty (60) identified tower sites.
LiDAR Mapping of the City of Baguio
As the country’s leader in LiDAR surveying, AB Surveying and Development completes the first ever citywide LiDAR mapping to arrive with survey-grade maps, including an aerial photo, digital surface model and digital terrain model (DSM-DTM), topographic and waterways map and as-built maps of structures, houses, roads, drainage system and surface utilities, suitable for engineering applications.
Baguio City, 5,750 hectares in area, is a highland retreat in the Grand Cordillera of Northern Luzon and is characterized as a highly urbanized mountainous area. If it were to be surveyed using conventional methods, it could have taken several years to gather that voluminous data on land. Through the advancement of technology, this timeframe has been reduced to a record time that seemed unimaginable a few years ago. Baguio City’s aerial LiDAR survey was conducted by mounting a LiDAR equipment from a helicopter and gathering data by grazing and sweeping Baguio City line after line during a flight scan that lasted for a total of only eight (8) hours.
The Government of Baguio City, in their initiative to sustain projects for city-wide infrastructure planning, road network management, flood mapping, tax mapping and disaster risk management, shares this feat with ABSD in a press conference held last November 27, 2018 at the City Multipurpose Hall.
Baguio City, 5,750 hectares in area, is a highland retreat in the Grand Cordillera of Northern Luzon and is characterized as a highly urbanized mountainous area. If it were to be surveyed using conventional methods, it could have taken several years to gather that voluminous data on land. Through the advancement of technology, this timeframe has been reduced to a record time that seemed unimaginable a few years ago. Baguio City’s aerial LiDAR survey was conducted by mounting a LiDAR equipment from a helicopter and gathering data by grazing and sweeping Baguio City line after line during a flight scan that lasted for a total of only eight (8) hours.
The Government of Baguio City, in their initiative to sustain projects for city-wide infrastructure planning, road network management, flood mapping, tax mapping and disaster risk management, shares this feat with ABSD in a press conference held last November 27, 2018 at the City Multipurpose Hall.
Architectural Documentation of San Nicolas De Tolentino Church
First constructed in 1584 and rebuilt in 1693, San Nicolas De Tolentino Parish Church is a beautifully preserved Roman Catholic church located in San Nicolas, Ilocos Norte. As one of the oldest buildings in the province, the Augustinian church is one of the treasured cultural heritage sites of the Ilocanos.
Given its historical significance, San Nicolas Church has undergone an architectural documentation as part of the parish’s preservation efforts with the aid of AB Surveying & Development. A detailed 3D laser as-built scanning of the baroque façade, interior and exterior features (including the three-storey bell tower) was made using FARO Focus 3D X330. In just a few hours of fieldwork, AB Surveying and Development was able to capture intricate details of the structure as point cloud data. 3D images were then made using a computer-aided design (CAD) software and fully displayed every feature, including cracks that the structure may have suffered over centuries of service. The generated data could now be used as basis for future renovations to maintain the original architectural design of the church.
In a country like the Philippines where centuries-old Catholic churches are considered significant pieces of culture, heritage, and tradition, preservation efforts are constantly needed. Technological advancements like the detailed 3D laser scanning are important tools that ensure the preservation and survival of these structures for generations to come.
Aerial LiDAR Survey of Proposed Light Rail Transit Expansion
Project Brief
Trains have always been a big help in easing the daily commute of the general public. It also helps in mitigating the heavy traffic that is evident in the cities of Metro Manila by giving an alternative choice for public transportation to the commuters. In the long run, it is the goal to make trains the main mode of mass public transportation and that is why the government keeps on improving and expanding train stations and routes in order to accommodate a larger population.
Through the use of Aerial LiDAR Scanning (using Riegl VUX 1-LR), ABSD has the possibility to survey the proposed route alignments in a faster manner without compromising the accuracy of the survey. The data gathered from the scanning is then used to make as-built maps and later on used for parcellary surveying to check for any encroachments on the alignment.

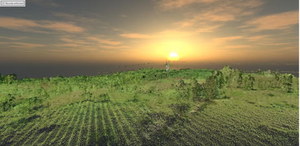

Aerial LiDAR Survey for Giga Ace 8 Solar Site
Aerial LiDAR Survey for Giga Ace 8 Solar Site
Aerial LiDAR Survey of Land Development Project in Laiya, Batangas
Land Development is the natural consequence of any province or city that has a rising economic growth. It is also our responsibility to balance growth and sustainability of any development project so that it will be of use for the succeeding generations. Costa de Madera is a land development project, which is located in Laiya, Batangas, that embodies that mantra of balanced growth and sustainability. ABSD partnered with Costa de Madera and used Aerial LiDAR Technology in order to make a topographic map of the project site.
Through the use of Aerial LiDAR Technology, we were able to gather topographic data of the project site in a shorter span of time, given the large area of the site, without compromising the accuracy of the survey. We were able to observe the changes in elevation of the terrain. Some features on the project site like trees, poles and existing residential areas. These data gathered will be of use for planning of further improvements on the area.
Aerial LiDAR Survey of Zambales Transmission Line 2
Aerial LiDAR Survey of Zambales Transmission Line 2
Aerial LiDAR Survey for Zambales Transmission Line 3
Aerial LiDAR Survey for Zambales Transmission Line 3
Aerial LiDAR Survey in Taytay, Rizal
Aerial LiDAR Survey in Taytay, Rizal
Aerial LiDAR Survey from Palauig to Botolan, Zambales (Transmission Line)
Aerial LiDAR Survey from Palauig to Botolan
Aerial LiDAR Survey in Mt. Labo
AERIAL LIDAR SURVEY IN MT. LABO
Aerial LiDAR Survey for Mining in Palawan
AERIAL LIDAR SURVEY FOR A MINING SITE
Aerial LiDAR Survey in Jala-Jala
AERIAL LIDAR SURVEY IN JALA-JALA
Aerial LiDAR Survey for Maynilad
AERIAL LIDAR SURVEY FOR MAYNILAD
Aerial LiDAR Survey for a Mining Site in Carrascal
A comprehensive topographic survey spanning 600 by 460 hectares was conducted in Carrascal, employing advanced LiDAR technology. This cutting-edge approach utilized laser-based remote sensing to capture precise elevation data and map the diverse terrain features of the area.
Route and Parcellary Survey in Masinloc
Our project entails an extensive 22 kms, 500 KV Transmission Line Facilities Route and Parcellary survey, made possible through cutting-edge LiDAR technology. This advanced remote sensing method allows us to obtain highly accurate elevation data and map key features of the landscape which will aid in informed decision-making for route optimization and precise parcel delineation, benefiting various development and planning endeavors.
Relocation and Topographic Survey in Tuy, Batangas
AB Surveying and Development conducted a relocation survey covering 460 hectares and a topographic survey spanning 1311 hectares located in Tuy, Batangas utilizing Aerial LiDAR technology. This cutting-edge approach ensures accurate and high-resolution data collection, enabling us to map terrain features, assess land suitability, and support informed decision-making for relocation and land development initiatives in the region.
ROUTE, TOPOGRAPHIC, AND, PROFILE AND CROSS-SECTION AERIAL LIDAR SURVEYING
A comprehensive survey of a 9.088 sq. km area in Dinagat was conducted using advanced Aerial LiDAR technology. The route, topographic, profile, and cross-section data captured provided an intricate understanding of the terrain.
Topographic and Parcellary Survey in Cauyan, Isabela
Utilizing aerial LiDAR technology in Isabela, a meticulous topographic and parcellary survey was conducted. This advanced method ensured precise data collection, aiding land management and development initiatives in the region.
Topographic Survey in Pagudpud
In Pagudpud, a topographic survey was executed using Aerial LiDAR technology. This method delivered highly accurate elevation and terrain data, supporting sustainable land planning and environmental conservation in the area.
Topographic and Parcellary Survey in San Marcelino
The topographic and parcellary surveying project for a 230kV transmission line in San Marcelino employs aerial LiDAR technology to gather high-precision data on the land's elevation and property boundaries. This information is crucial for designing and planning the transmission line route, ensuring efficient and sustainable energy transmission while adhering to property boundaries and environmental regulations.

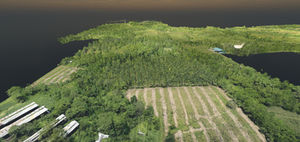

Aerial LiDAR Surveying in Tantangan
AERIAL LIDAR SURVEYING IN TANTANGAN
Aerial LiDAR Surveying from Antipolo to Tanay
AERIAL LIDAR SURVEYING IN ANTIPOLO, TANAY
Aerial LiDAR Surveying in Mabitac, Laguna
AERIAL LIDAR SURVEYING IN MABITAC, LAGUNA
Aerial LiDAR Surveying in Binangonan, Rizal
AERIAL LIDAR SURVEYING IN BINANGONAN, RIZAL
Aerial LiDAR Surveying in Quezon Province for Renewable Energy
AB Surveying and Development conducted an Aerial LiDAR Survey for a renewable energy company located in Quezon Province.
LiDAR offers precise topographical data, enabling efficient site selection for renewable energy projects such as wind farms and solar installations. It aids in optimizing energy production, minimizing environmental impact, and enhancing safety through accurate terrain mapping, making it a valuable tool for sustainable energy development.

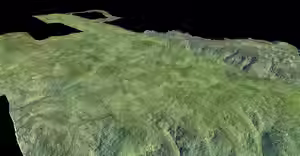

Aerial LiDAR Surveying for Island Wind Power 1
AB Surveying and Development conducted an Aerial LiDAR Survey for a renewable energy company within the 335MW Island Wind Power Project Site located in the Provinces of Laguna and Quezon.
Aerial LiDAR Surveying for Real Ace Wind Power Project
AB Surveying and Development conducted an Aerial LiDAR Survey for a renewable energy company within the Real Ace Wind Power Project Site located in the Province of Quezon.
Aerial LiDAR Surveying for Pasacao Wind Power
AB Surveying and Development conducted an Aerial LiDAR Survey for a renewable energy company within the 252MW Pasacao Wind Power Project Site Located in the Province of Camarines Sur.
Aerial LiDAR Surveying for Banahaw Wind Power
AB Surveying and Development conducted an Aerial LiDAR Survey for a renewable energy company within the 170MW Banahaw Wind Power Project Site Located in the Province of Quezon.
Aerial LiDAR Surveying for Island Wind Power 2
AB Surveying and Development conducted an Aerial LiDAR Survey for a renewable energy company located at the Island Wind Power Project Site in the Provinces of Quezon and Laguna.
Aerial LiDAR Surveying for Dinapigue in Isabela
AB Surveying and Development conducted an Aerial LiDAR Mapping Survey for a mining company located in the Province of Isabela (Dinapigue).
